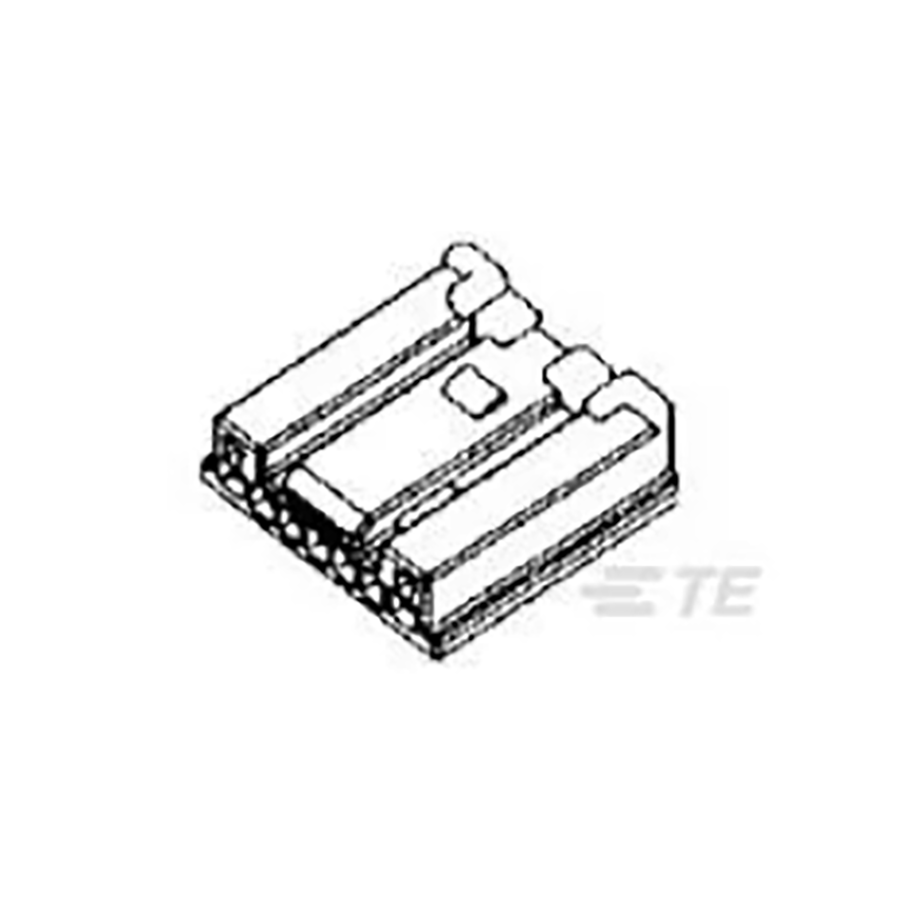

1318801-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1318801-1
Datasheet:
Description:
Automotive Connectors Cable Number of Positions:7 Female
| Parameter | Value |
|---|---|
| Length | 19 mm |
| Width | 19.304 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -30 °C |
| Height | 8.7884 mm |
| Packaging | Bulk |
| Depth | 8.8 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 13.7922 mm |
| Flammability Rating | UL94HB |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 7 |
| ELV | Compliant |
| Body Material | PBT |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Circuit Application | Signal |
| Housing Color | Black |
| Mating Tab Width | 1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | Yes |
| Serviceable | Yes |
Stock: 391
Distributors
pcbx
pcbxUnit Price$0.45055
Ext.Price$0.45055
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45055 | $0.45055 |
| 10 | $0.41720 | $4.17200 |
| 25 | $0.41692 | $10.42300 |
| 50 | $0.41664 | $20.83200 |
| 100 | $0.41635 | $41.63500 |
| 300 | $0.41549 | $124.64700 |
| 500 | $0.41464 | $207.32000 |
| 1000 | $0.41379 | $413.79000 |
| 3000 | $0.40340 | $1210.20000 |
| 5000 | $0.39327 | $1966.35000 |
